VowelClassifier Class Reference

#include <VowelClassifier.h>

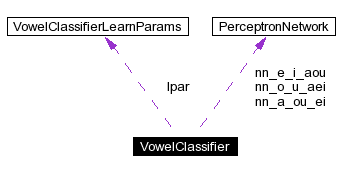

Collaboration diagram for VowelClassifier:

[legend]List of all members.

Public Member Functions
	VowelClassifier (unsigned int input_dim, const VowelClassifierLayout *layout)
	~VowelClassifier (void)
	VowelClassifier (VowelClassifier &source)
bool	load (fstream &fs)
void	save (fstream &fs) const
VowelClassification	classifyVowel (const VowelSample *input)
void	learnVowel (const VowelSample *input)
void	updateLearned (void)
void	resetLearned (void)
void	setLearningParameters (VowelClassifierLearnParams params)
VowelClassifierLearnParams	getLearningParameters (void) const
const char *	getExpertName (unsigned int expert_number)
void	randomizeExpert (unsigned int expert)
void	setRandomizationParameters (unsigned int expert, double weight_low, double weight_high, double theta_low, double theta_high)
bool	setActivationFunction (unsigned int expert_number, PerceptronLayerType type, const char *fact_name)
PerceptronNetwork *	getNetwork (unsigned int expert_number) const
Static Public Attributes
vector< double >	correct_results [3][(VowelSampleType) Unknown+1]
Private Member Functions
vector< double >	getExpertResults (PerceptronNetwork *exp, vector< double > in)
void	singleExpertLearn (PerceptronNetwork *exp, vector< double > input, vector< double > optimal)
void	initializeCorrectResults (void)
Private Attributes
PerceptronNetwork *	nn_a_ou_ei
PerceptronNetwork *	nn_o_u_aei
PerceptronNetwork *	nn_e_i_aou
VowelClassifierLearnParams	lpar
vector< RandomInterval >	weight_initializations
vector< RandomInterval >	theta_initializations

---

Detailed Description

Vowel classification system.

Classifies and learns VowelSample's.

---

Constructor & Destructor Documentation

VowelClassifier::VowelClassifier (  unsigned int    input_dim, const VowelClassifierLayout *    layout )

Basic constructor. Construct the VowelClassifier, given its layout through the parameters. Parameters: input_dim  The input dimension for each sample the classifier should process. layout  Part of the neural network layout, the dimensions of each layer, except the first and the last one.

VowelClassifier::~VowelClassifier (  void    )

Default destructor.

VowelClassifier::VowelClassifier (  VowelClassifier &    source )

Copy constructor. Parameters: source  Source object to be copied.

---

Member Function Documentation

VowelClassification VowelClassifier::classifyVowel (  const VowelSample *    input )

Classify a vowel. Parameters: input  The vowel sample the system should try to classify.

const char* VowelClassifier::getExpertName (  unsigned int    expert_number )

Get the symbolic name of the expert network associated with expert_number. Parameters: expert_number  The number of expert the name should be obtained from. Can range from 0 to 2. Returns: The name of the expert.

vector< double > VowelClassifier::getExpertResults (  PerceptronNetwork *    exp, vector< double >    in )  [private]

Ask one expert individually. Processes a single neural network by feeding input in, and returning the networks output layer. Parameters: exp  The expert to be asked. in  The network input.

VowelClassifierLearnParams VowelClassifier::getLearningParameters (  void    )  const

Get the currently used learning parameters.

PerceptronNetwork * VowelClassifier::getNetwork (  unsigned int    expert_number )  const

Get the PerceptronNetwork object behind an expert. Parameters: expert_number  The network to be returned. Returns: The network.

void VowelClassifier::initializeCorrectResults (  void    )  [private]

Create the initialization maps in correct_results.

void VowelClassifier::learnVowel (  const VowelSample *    input )

Learn a vowel input using the current learning parameters. Note that while the internal system state changes due to the learning, the effective network does not. Hence, if you want to make the changes effective, you have to call updateLearned () afterwards. By choosing to call it after each learnVowel () call, you implement online-learning. Using a number of learnVowel () calls and then calling updateLearned () does all the accumulated changes at once, hence you implement batch-learning. Parameters: input  The vowel, including its type_correct member, that the system should learn to classify.

bool VowelClassifier::load (  fstream &    fs )

Load three networks from the stream fs. Parameters: fs  The stream the system is loaded from. Returns: True on success, false on failure.

void VowelClassifier::randomizeExpert (  unsigned int    expert )

Randomize the network parameters. Parameters: expert  The expert index (0-2) that is initialized using its current settings.

void VowelClassifier::resetLearned (  void    )

Reset the currently learned parameter differences. After having called updateLearned (), the differences are still active. To reset the learned differences when starting a new learning epoch, you have to call this method.

void VowelClassifier::save (  fstream &    fs )  const

Save the entire classification system. Parameters: fs  The already open write stream the system is saved to.

bool VowelClassifier::setActivationFunction (  unsigned int    expert_number, PerceptronLayerType    type, const char *    fact_name )

Set the activation function name. Parameters: expert_number  The number (0-2) of the expert you want to change. type  The layer type you want to change the activation function of. fact_name  The symbolic name of the activation function. Returns: True on success, false on failure.

void VowelClassifier::setLearningParameters (  VowelClassifierLearnParams    params )

Set the learning parameters. Change the internal learning parameters of the system. To keep this extendable we use a structure here. Parameters: params  The parameters to apply.

void VowelClassifier::setRandomizationParameters (  unsigned int    expert, double    weight_low, double    weight_high, double    theta_low, double    theta_high )

Set the randomization parameters for an expert. Parameters: expert  The expert index (0-2). weight_low  The lower randomization boundary for the weights. weight_high  The higher boundary for the weights. theta_low  The lower theta-initialization boundary. theta_high  The higher theta-initialization boundary.

void VowelClassifier::singleExpertLearn (  PerceptronNetwork *    exp, vector< double >    input, vector< double >    optimal )  [private]

Propagate and backpropagate for a single expert. Parameters: exp  The expert network to be processed. input  The input vector. optimal  The optimal output vector used for the backprogation process.

void VowelClassifier::updateLearned (  void    )

Update the effective system states. Updating the states make the changes the learnVowel () method produced effective, hence increasing the classification success, hopefully.

---

Member Data Documentation

vector< double > VowelClassifier::correct_results [static]

The training map to teach the experts. Each expert has its own translation map. The map itself maps a vowel type to the optimal expert results. For example, the first expert categorizes into the groups { A, OU, EI }, and would have this entries for the A vowel type: correct_results[0][(VowelSampleType) A][0] = 1.0; correct_results[0][(VowelSampleType) A][1] = 0.0; correct_results[0][(VowelSampleType) A][2] = 0.0; This is what it wants to tell you: "When the correct type is an A, the first output neuron should have level 1.0, the second and third the level 0.0". (For the first expert). Note, that before using the correct_results map you have to initialize it using initializeCorrectResults. Also, the array should be used read-only from outside this class.

VowelClassifierLearnParams VowelClassifier::lpar [private]

The system internal learning parametrization.

PerceptronNetwork* VowelClassifier::nn_a_ou_ei [private]

One MLP expert that groups the input vowel into three disjoint sets: { a }, { o, u } and { e, i }. Named "network 0".

PerceptronNetwork* VowelClassifier::nn_e_i_aou [private]

One MLP expert that groups the input vowel into three disjoint sets: { e }, { i } and { a, o, u }. Named "network 2".

PerceptronNetwork* VowelClassifier::nn_o_u_aei [private]

One MLP expert that groups the input vowel into three disjoint sets: { o }, { u } and { a, e, i }. Named "network 1".

vector<RandomInterval> VowelClassifier::theta_initializations [private]

The theta initialization array, containing three intervals.

vector<RandomInterval> VowelClassifier::weight_initializations [private]

The weight initialization array, containing three intervals.

---

The documentation for this class was generated from the following files:

• VowelClassifier.h
• VowelClassifier.cpp

---
